AR Maglock Kingpin PAL System V2
AR Maglock Kingpin PAL System V2
AR-15 ONLY

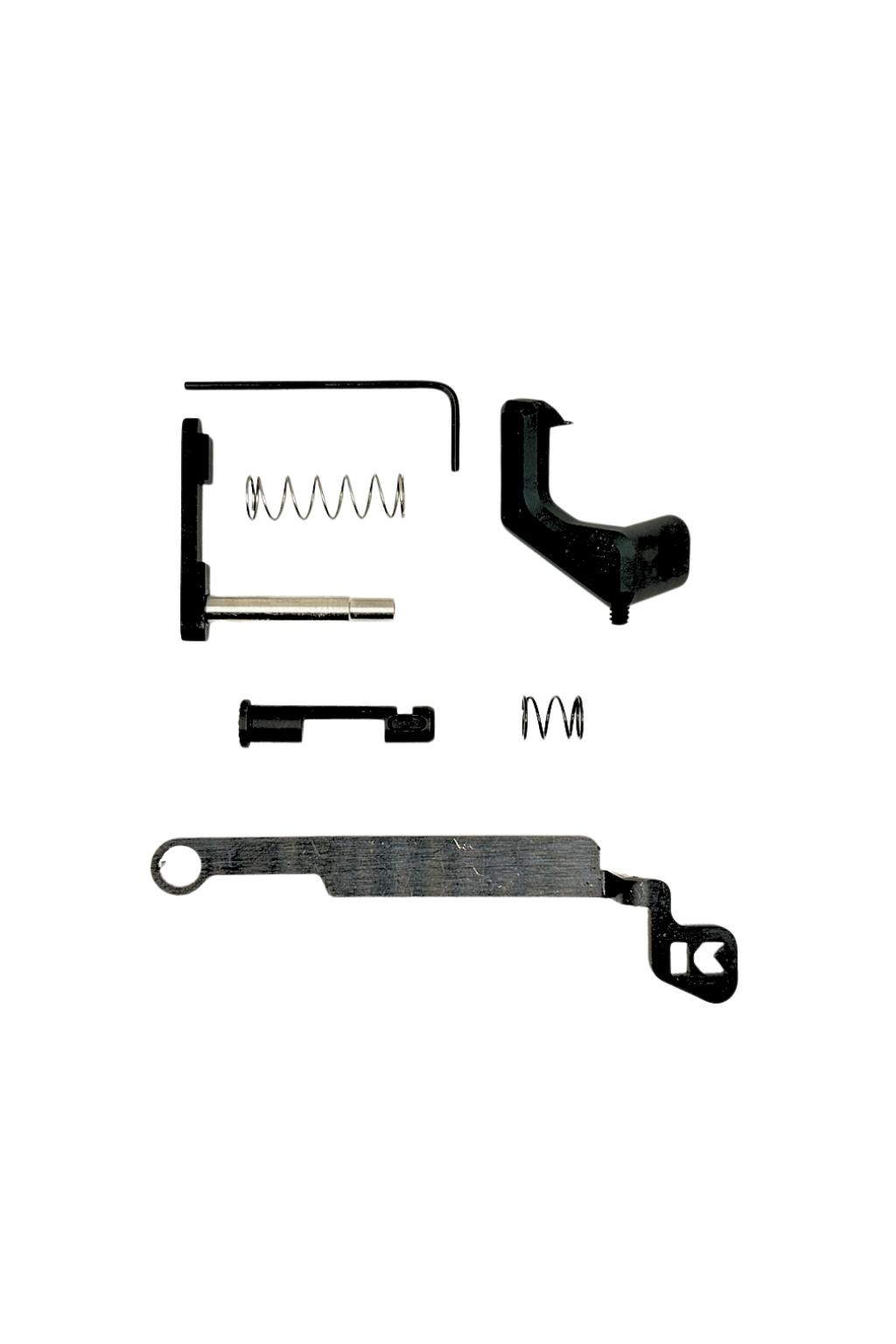

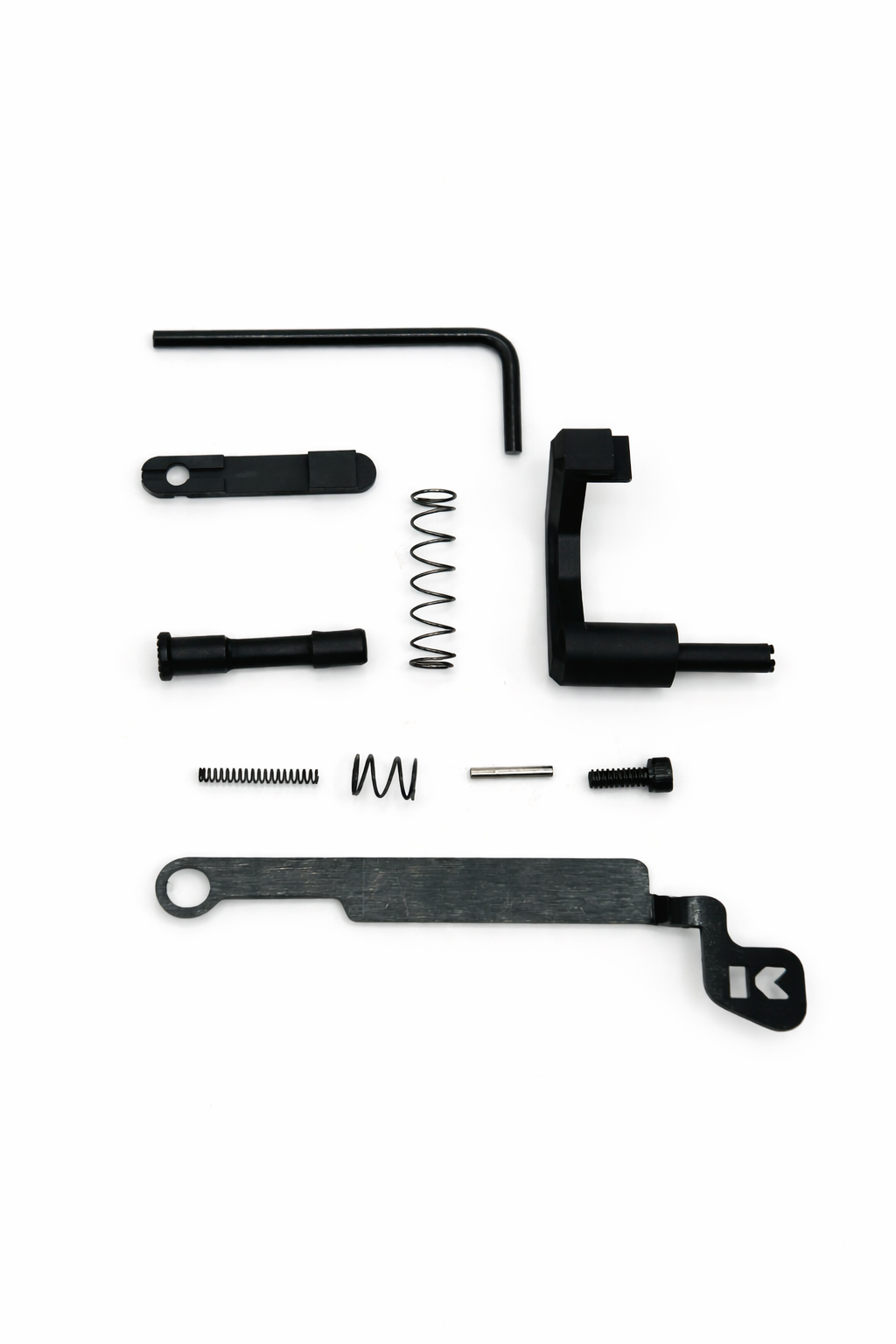

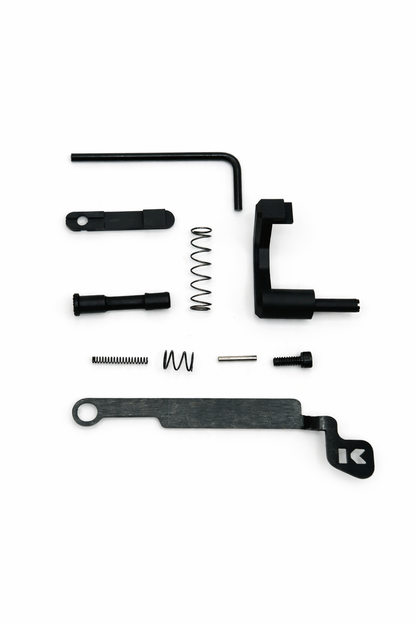

The KingPin PAL is an add-on lever system designed to work with AR Maglock Gen 2 or Gen 4 and a KingPin. It improves ergonomics and allows faster, more natural magazine changes making a fixed-mag rifle function closer to a standard mag release while staying compliant. It also helps with easier malfunction clearing and overall usability.
AR Maglock Gen 2 / Gen 4 (with KingPin)
The AR Maglock system is a fixed magazine locking device that keeps your rifle compliant by preventing magazine release unless the action is slightly opened. When paired with the KingPin, it allows quick separation of the upper and lower receiver for faster reloads.
- Gen 2: Basic fixed-mag solution with a more fixed, less adjustable setup
- Gen 4: Updated version with improved adjustability to fit a wider range of receivers and allow finer tuning for function and compatibility
Simple way to think about it:
Maglock + KingPin = compliance system
PAL = performance upgrade (makes it faster & easier to use)
Share
Compatible with AR Maglock Gen 2 or Gen 4 systems paired with a Kingpin. NOT compatible with the Hellfighter pin.
**Gen 4 & Gen 2 is currently out of stock. Due to a shipment delay from AR Maglock, Gen 4 orders are expected to ship the week of June 14.**
Couldn't load pickup availability
IMPORTANT COMPATIBILITY REQUIREMENTS: The KingPin PAL is designed to work ONLY with a complete AR Maglock Gen 2 or Gen 4 system, including:• AR Maglock fixed magazine device• AR Maglock Kingpin rear takedown pinThe PAL system is NOT compatible with:• Juggernaut Tactical Hellfighter pins or systems• Any non-AR Maglock rear takedown pins• Ambidextrous bolt release systems or controlsSome users have modified their AR Maglock systems to work with ambidextrous controls, however the PAL system is not designed to function with those setups. In most cases, ambidextrous safeties will still work.The KingPin PAL is designed around standard MIL-SPEC uppers and lowers. Function cannot be guaranteed with billet receivers or mixed upper/lower combinations.Before purchasing, please confirm you are using a complete AR Maglock Gen 2 or Gen 4 system with a Kingpin.
INSTALLATION TIPS: Some minor gunsmithing may be required for proper function with the AR Maglock Gen 2 or Gen 4, Kingpin, and KingPin PAL system.Installation of the KingPin PAL requires removal of the rear takedown pin detent and detent spring. To do this, you will need to remove the castle nut and end plate/back plate. Depending on your lower receiver, it may be possible to install the PAL system without removing the AR Maglock. However, in some setups, the AR Maglock may also need to be removed and reinstalled during installation of the PAL.For easier installation, we recommend loosening or removing the AR Maglock if needed to avoid scratching or forcing parts into place. Always function test your rifle after installation to ensure proper operation before use.
DISCLAIMER: KLVR CO AND ITS PRODUCTS ARE NOT AFFILIATED WITH AR MAGLOCK PRODUCTS AND ARE NOT STANDALONE COMPLIANCE DEVICES. THE PAL SYSTEM IS DESIGNED ONLY TO ASSIST IN THE OPERATION OF AN ALREADY INSTALLED FIXED MAGAZINE COMPLIANCE SYSTEM ON YOUR RIFLE. INSTALLATION OF THE PAL SYSTEM ALONE DOES NOT MAKE A RIFLE FIXED MAGAZINE COMPLIANT. WHEN USING ANY FIXED MAGAZINE DEVICE, IT IS THE USER’S RESPONSIBILITY TO ENSURE THE RECEIVERS ARE FULLY CLOSED BEFORE PULLING THE TRIGGER.
